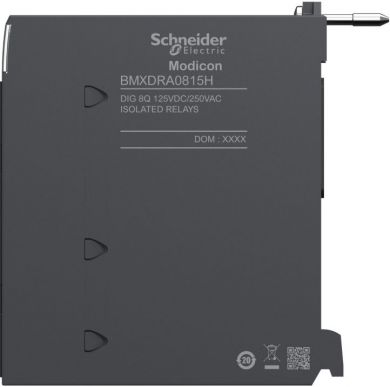

Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24 to 125V DC, for severe e

Appendant operation agent (Ex ia)

-

Appendant operation agent (Ex ib)

-

Depth

150 mm

Digital inputs configurable

-

Digital outputs configurable

+

Explosion safety category for dust

None

Explosion safety category for gas

None

Input current at signal 1

0.65 mA

Kõrgus

100 mm

Laius

33 mm

Number of digital inputs

0

Number of digital outputs

8

Output current

2 A

Performance level acc. EN ISO 13849-1

None

Permitted voltage at input

125 .. 250 V

Permitted voltage at output

125 .. 250 V

Power consumption

3.6 W

Redundancy

-

SIL according to IEC 61508

None

Short-circuit protection, outputs available

+

Suitable for safety functions

-

Supply voltage AC 50 Hz

250 .. 250 V

Supply voltage AC 60 Hz

250 .. 250 V

Supply voltage DC

125 .. 125 V

Time delay at signal exchange

0 .. 10 ms

Type of digital output

Relay

Type of electric connection

Plug-in connection

Type of output voltage

AC/DC

Type of voltage (input voltage)

AC/DC

Voltage type of supply voltage

AC/DC
