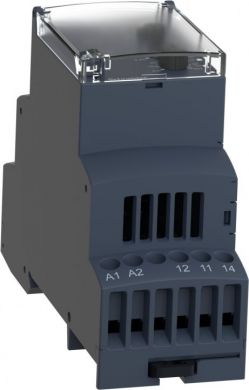

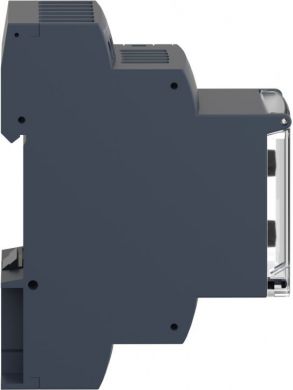

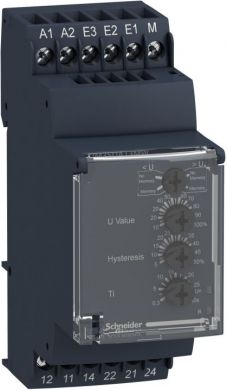

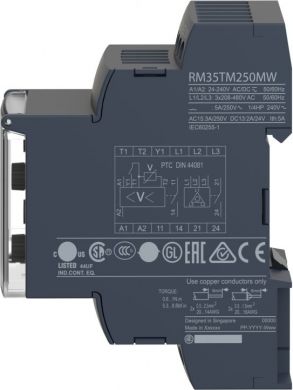

voltage control relay, Harmony Control Relays, 5A, 2CO, range 1..100V, 24..240V AC DC

Contains function DC-over voltage

+

Contains function DC-under voltage

+

Contains function DC-voltage hysteresis

-

Depth

72 mm

External power supply required

-

Kõrgus

90 mm

Laius

35 mm

Max. permitted delay-on energization time

30 s

Max. permitted off-delay time

30 s

Min. adjustable delay-on energization time

0.3 s

Min. adjustable off-delay time

0.3 s

Number of contacts as change-over contact

2

Number of contacts as normally closed contact

0

Number of contacts as normally open contact

0

Rated control supply voltage Us at AC 50HZ

24 .. 240 V

Rated control supply voltage Us at AC 60HZ

24 .. 240 V

Rated control supply voltage Us at DC

24 .. 240 V

Response value voltage

1 .. 100 V

Single-phase hysteresis possible

-

Single-phase over voltage possible

+

Single-phase under voltage possible

+

Three-phase hysteresis possible

-

Three-phase over voltage possible

-

Three-phase under voltage possible

-

Type of electric connection

Screw connection

Type of voltage measurement range

AC

Voltage measurement range 1

1 .. 100 V

Voltage type for actuating

AC/DC

With detachable clamps

-
