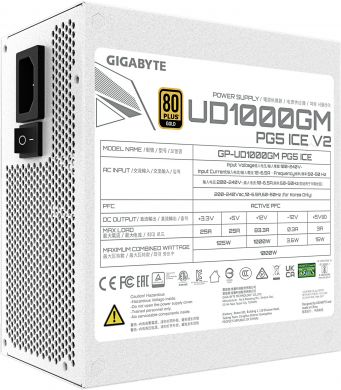

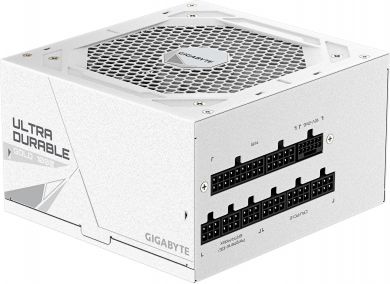

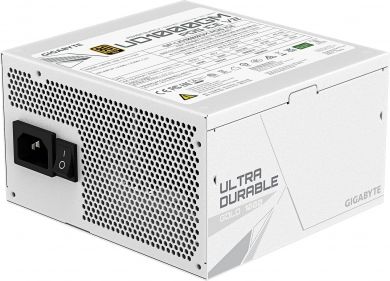

Power Supply GIGABYTE UD1000GM PG5 ICE ATX 3.1 1000 Watts Efficiency 80 PLUS GOLD PFC Active MTBF 100000 hours GP-UD1000GMPG5ICE

Toote ID : 96057025 Tarnija laos
Gigabyte Power Supply GIGABYTE UD1000GM PG5 ICE ATX 3.1 1000 Watts Efficiency 80 PLUS GOLD PFC Active MTBF 100000 hours GP-UD1000GMPG5ICE GP-UD1000GM PG5 ICE | Elektrika.lv
Gigabyte Power Supply GIGABYTE UD1000GM PG5 ICE ATX 3.1 1000 Watts Efficiency 80 PLUS GOLD PFC Active MTBF 100000 hours GP-UD1000GMPG5ICE GP-UD1000GM PG5 ICE | Elektrika.lv
Gigabyte Power Supply GIGABYTE UD1000GM PG5 ICE ATX 3.1 1000 Watts Efficiency 80 PLUS GOLD PFC Active MTBF 100000 hours GP-UD1000GMPG5ICE GP-UD1000GM PG5 ICE | Elektrika.lv
Gigabyte Power Supply GIGABYTE UD1000GM PG5 ICE ATX 3.1 1000 Watts Efficiency 80 PLUS GOLD PFC Active MTBF 100000 hours GP-UD1000GMPG5ICE GP-UD1000GM PG5 ICE | Elektrika.lv
Gigabyte Power Supply GIGABYTE UD1000GM PG5 ICE ATX 3.1 1000 Watts Efficiency 80 PLUS GOLD PFC Active MTBF 100000 hours GP-UD1000GMPG5ICE GP-UD1000GM PG5 ICE | Elektrika.lv
Gigabyte Power Supply GIGABYTE UD1000GM PG5 ICE ATX 3.1 1000 Watts Efficiency 80 PLUS GOLD PFC Active MTBF 100000 hours GP-UD1000GMPG5ICE GP-UD1000GM PG5 ICE | Elektrika.lv
Gigabyte Power Supply GIGABYTE UD1000GM PG5 ICE ATX 3.1 1000 Watts Efficiency 80 PLUS GOLD PFC Active MTBF 100000 hours GP-UD1000GMPG5ICE GP-UD1000GM PG5 ICE | Elektrika.lv

Hind ja kogus

* Hinnad kehtivad, kuni kaupa jätkub. Kui antud toode on laost otsas, teavitavad meie spetsialistid teid tarneaegadest ja hindadest.
(0)

  • e-poe hind

    117.95 € / pcs.

  • Kogus

  • Tasutav summa KM-ga (21%)

    117.95 €

Kättesaadavus

* Allpool on toodud kauba saadavus Elektrika filiaalides. Kui toode asub tarnija laos, võib tarneaeg Elektrika lattu võtta 2–12 tööpäeva.

  • Riga (Marupe)

    0

  • Daugavpils

    0

  • Valmiera

    0

  • Ventspils

    0

  • Tarnija ladu

    50

Teave toote kohta

* Piltidel vaid informatiivne tähendus

  • Tootja

    Gigabyte

  • Tootja ID

    GP-UD1000GM PG5 ICE

  • EAN

    4719331556594

Toote parameetrid

Toote parameetrid

  • 80 PLUS certification

    80 PLUS Gold

  • AC input frequency

    50

  • AC input voltage

    100 V

  • ATX version

    3.1

  • Bearing technology

    HYB

  • CPU power cable length

    650 mm

  • CPU power connector (4+4 pin)

    +

  • Cabling type

    Fully-Modular

  • Combined power (+3.3V)

    125

  • Combined power (+5V)

    125

  • Combined power (+5Vsb)

    15

  • Combined power (+12V)

    1000

  • Combined power (-12V)

    3.6

  • Cooling type

    Active

  • Depth

    140 mm

  • Efficiency

    90

  • Fan diameter

    120 mm

  • Floppy drive power connector

    1

  • Height

    86 mm

  • Hold time

    16 ms

  • Input current

    15

  • Max output current (+3.3V)

    25

  • Max output current (+5V)

    25

  • Max output current (+5Vsb)

    3

  • Max output current (+12V)

    83.3

  • Max output current (-12V)

    0.3

  • Mean time between failures (MTBF)

    100000

  • Model name

    UD1000GM PG5 ICE

  • Motherboard power cable length

    610 mm

  • Motherboard power connector

    20+4 pin ATX

  • Number of EPS connectors

    2

  • Number of SATA power connectors

    8

  • Number of fans

    1

  • On/off switch

    +

  • PCI Express connector

    +

  • PCI Express power cable length

    600 mm

  • PCI Express power connectors (6+2 pin)

    4

  • PCI Express power connectors (12+4 pin)

    1

  • PCI Express power connectors (12+4 pin) cable length

    700 mm

  • Package depth

    269 mm

  • Package height

    211 mm

  • Package type

    Box

  • Package weight

    2640 g

  • Package width

    618 mm

  • Peripheral (Molex) power connectors (4-pin)

    3

  • Power Factor Correction (PFC) type

    Active

  • Power factor

    0.9

  • Power protection features

    Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage

  • Power supply unit (PSU) form factor

    ATX

  • Product colour

    White

  • Purpose

    PC

  • Summary

    GIGABYTE UD1000GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 2

  • Total power

    1000

  • Unit Box Height

    0.053

  • Unit Box Length

    0.12

  • Unit Box Width

    0.26

  • Unit Calculated Volume

    0.007812 cubm

  • Units per Pallet

    0

  • Vendor Homepage

    https://www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5-ICE#kf

  • Warranty period

    10

  • Weight

    2480 g

  • Width

    150 mm

Kirjeldus

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

  • Intel ATX 3.1 and PCIe Gen 5.1 ready
  • 80 PLUS Gold certified
  • Fully modular design
  • Powerful single +12V rail
  • Compact size
  • 100% Japanese capacitors
  • 120mm smart hydraulic bearing (HYB) fan
  • Optimized thermal solution
  • OVP/OPP/SCP/UVP/OCP/OTP protection
