Puszka Podtynkowa Elewacyjna Hermetyczna Ppt-EH251, IK07, IP65, pokrywa z tworzywa sztucznego

Can be coupled

-

Circuit integrity

None

Clamp position fixed

-

Construction type

Built-in installation box (device box)

Cover attachment

Screwed

Cover model

Suitable for snap-in connector (brand specific)

Degree of protection (IP)

IP65

Degree of protection (NEMA)

4X

Depth

92 .. 92 mm

Diameter

0 mm

Equipped with

Other

For number of electric fittings

6

For tube diameter

32 mm

Halogeenivaba

+

Housing feed-through by break-out opening

+

Housing feed-through by nozzle

+

Housing feed-through by seal membrane

+

Housing feed-through by step membrane

+

Inlet from the rear

-

Internal depth

80 mm

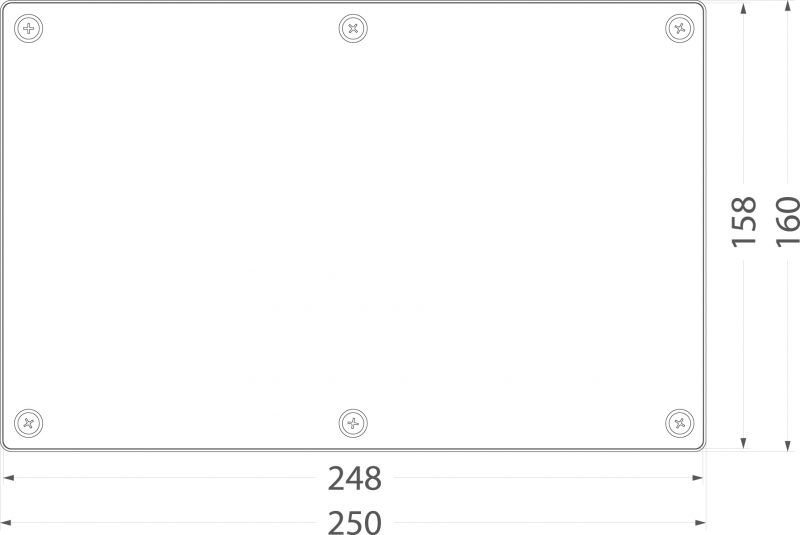

Laius

160 mm

Length

250 mm

Luminaire hook mounting

-

Materjalist

Plastic

Max. conductor cross section

32 mm²

Model

Double

Mounting method

Flush mounted (plaster)

Mounting switching equipment

Screwing

Nozzle

Other

Number of adjustable device fixing lugs

0

Number of included spouts

4

Number of inlets

4

Number of non-adjustable device fixing lugs

0

Number of poles of the clamp

0

Pipe locking

-

Pipe locking optional

-

Provided with revolving ring

-

Sealable

-

Shape

Rectangular

Special application

Other

Suitable for cable diameter

8 .. 32 mm

Suitable for wall/board thickness

100 .. - mm

Surface protection

Untreated

Transparent cover

-

Värv

Hall

Wind proof

+

With partition

-

With screening

-

With screws

+
