Temperature transmitter, 0..100 °C/32..212 °F, for Universal Pt100 probes. range of product: Zelio Analog - product or component type: converter for Universal Pt100 probes - analogue output type: current 0...20 mA <= 500 Ohm, current 4...20 mA <= 500

Construction type of device

Other

Degree of protection (IP)

IP20

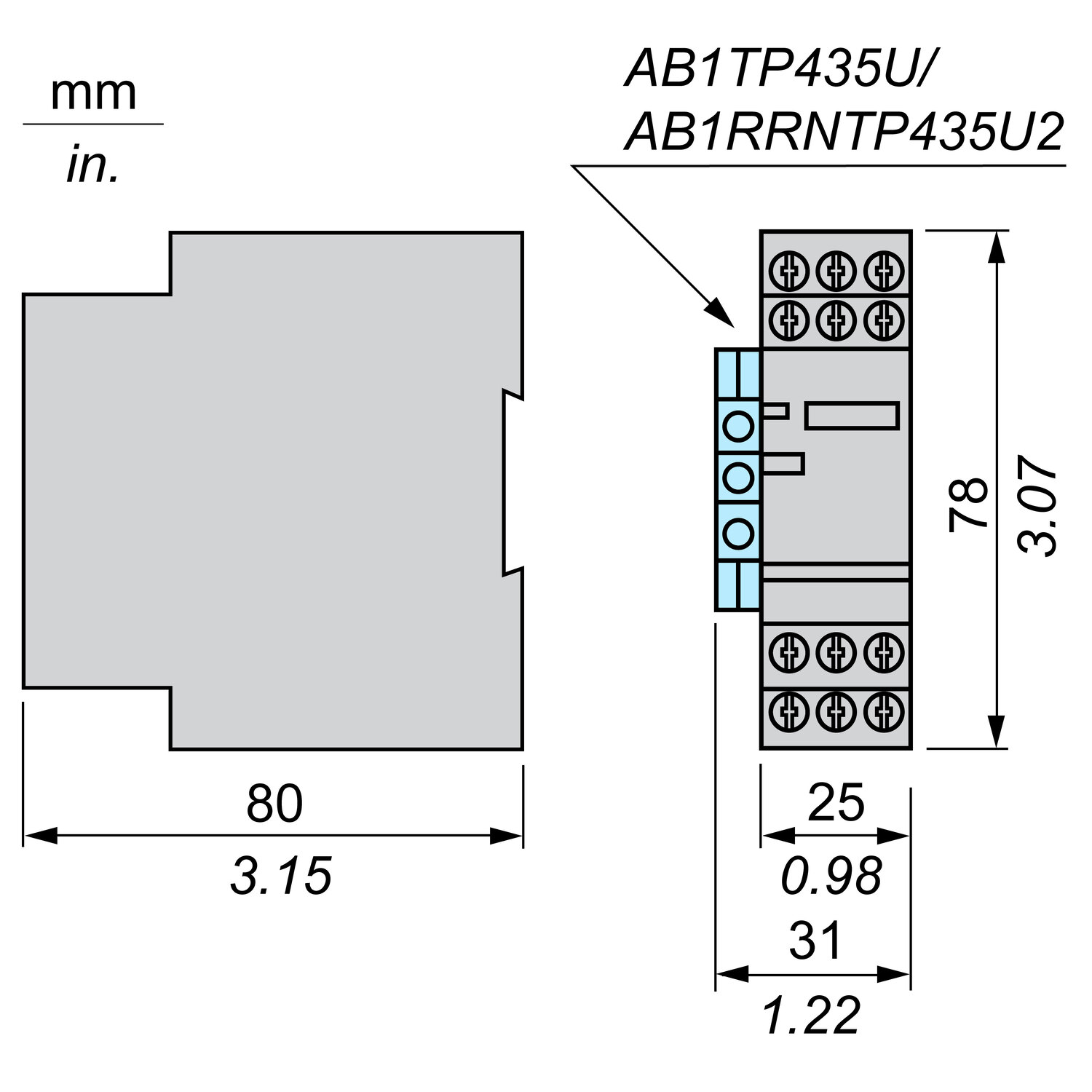

Depth

80 mm

Galvanic separation between input and output

-

Galvanic separation between inputs

-

Galvanic separation between output to output

-

Galvanic separation between supply voltage and all other current circuits

-

Inherently safe according to EN 60947-5-6 NAMUR

+

Kõrgus

78 mm

Laius

25 mm

Load

0.2 .. 0.2 Ohm

Load influence

0 %/100%

Malfunction message output

-

Mounting method

Snap mounting support rail

Number of channels

1

Number of input ranges +5 V ... -5 V

0

Number of input ranges +10 V ... -10 V

0

Number of input ranges -1 V ... +1 V

0

Number of input ranges -2 V ... +2 V

0

Number of input ranges -2.5 V ... +2.5 V

0

Number of input ranges -5 V ... +5 V

0

Number of input ranges -5 mA ... +5 mA

0

Number of input ranges -10 V ... +10 V

0

Number of input ranges -10 mA ... +10 mA

0

Number of input ranges -20 V ... +20 V

0

Number of input ranges -20 mA ... +20 mA

0

Number of input ranges -60 mV ... +60 mV

0

Number of input ranges -100 mV ... +100 mV

0

Number of input ranges -300 mV ... +300 mV

0

Number of input ranges -500 mV ... +500 mV

0

Number of input ranges 0 V ... 1 V

0

Number of input ranges 0 V ... 2 V

0

Number of input ranges 0 V ... 2.5 V

0

Number of input ranges 0 V ... 5 V

0

Number of input ranges 0 V ... 10 V

1

Number of input ranges 0 V ... 20 V

0

Number of input ranges 0 V ... 24 V

0

Number of input ranges 0 V ... 30 V

0

Number of input ranges 0 mA ... 5 mA

0

Number of input ranges 0 mA ... 10 mA

0

Number of input ranges 0 mA ... 20 mA

1

Number of input ranges 0 mV ... 60 mV

0

Number of input ranges 0 mV ... 100 mV

0

Number of input ranges 0 mV ... 200 mV

0

Number of input ranges 0 mV ... 300 mV

0

Number of input ranges 0 mV ... 500 mV

0

Number of input ranges 1 V ... 5 V

0

Number of input ranges 2 V ... 10 V

0

Number of input ranges 4 mA ... 20 mA

1

Number of input ranges 5 V ... 0 V

0

Number of input ranges 5 V ... 1 V

0

Number of input ranges 10 V ... 0 V

0

Number of input ranges 10 V ... 2 V

0

Number of input ranges 20 mA ... 0 mA

0

Number of input ranges 20 mA ... 4 mA

0

Number of output ranges +5 V ... -5 V

0

Number of output ranges +10 V ... -10 V

0

Number of output ranges -1 V ... +1 V

0

Number of output ranges -2 V ... +2 V

0

Number of output ranges -2.5 V ... +2.5 V

0

Number of output ranges -5 V ... +5 V

0

Number of output ranges -5 mA ... +5 mA

0

Number of output ranges -10 V ... +10 V

0

Number of output ranges -10 mA ... +10 mA

0

Number of output ranges -20 V ... +20 V

0

Number of output ranges -20 mA ... +20 mA

0

Number of output ranges -60 mV ... +60 mV

0

Number of output ranges -100 mV ... +100 mV

0

Number of output ranges -300 mV ... +300 mV

0

Number of output ranges -500 mV ... +500 mV

0

Number of output ranges 0 V ... 1 V

0

Number of output ranges 0 V ... 2 V

0

Number of output ranges 0 V ... 2.5 V

0

Number of output ranges 0 V ... 5 V

0

Number of output ranges 0 V ... 10 V

1

Number of output ranges 0 V ... 20 V

0

Number of output ranges 0 V ... 24 V

0

Number of output ranges 0 V ... 30 V

0

Number of output ranges 0 mA ... 5 mA

0

Number of output ranges 0 mA ... 10 mA

0

Number of output ranges 0 mA ... 20 mA

1

Number of output ranges 0 mV ... 60 mV

0

Number of output ranges 0 mV ... 100 mV

0

Number of output ranges 0 mV ... 200 mV

0

Number of output ranges 0 mV ... 300 mV

0

Number of output ranges 0 mV ... 500 mV

0

Number of output ranges 1 V ... 5 V

0

Number of output ranges 2 V ... 10 V

0

Number of output ranges 4 mA ... 20 mA

1

Number of output ranges 5 V ... 0 V

0

Number of output ranges 5 V ... 1 V

0

Number of output ranges 10 V ... 0 V

0

Number of output ranges 10 V ... 2 V

0

Number of output ranges 20 mA ... 0 mA

0

Number of output ranges 20 mA ... 4 mA

0

Operation temperature

0 .. 60 °C

Power consumption

1.44 W

Rated supply voltage at DC

24 .. 24 V

SIL according to IEC 61508

None

Switching current

0.004 A

Switching power

1.4 VA

Switching voltage

24 V

Type of electric connection

Screw connection

Type of power supply

Active
