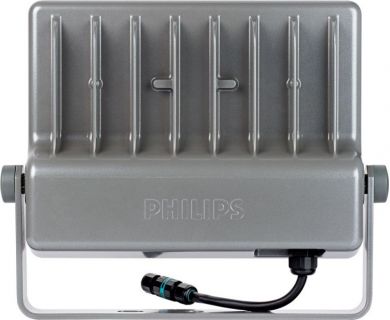

BVP125 LED80-4S/740 S Coreline Tempo Floodlight

Adjustability

Swivelling

Beam angle

Medium beam 21-40°

Beam angle adjustable

No

Built-in height/depth

- mm

Built-in length

- mm

Built-in width

- mm

Colour consistency (McAdam ellipse)

SDCM3

Colour housing

Grey

Colour of light

White

Colour rendering index CRI

70-79

Colour temperature

4000 .. 4000 K

Colour temperature adjustable

No

Compatible with Amazon Alexa

-

Compatible with Apple HomeKit

-

Compatible with Google Assistant

-

Conductor cross section

1.5 mm²

Connectable conductor cross section

7 .. 14 mm²

Connection type

Insulation displacement connector

Constant luminous flux control

-

Control gear included

+

Covering of the luminaire with thermally insulating material possible

-

Degree of protection (IP)

IP66

Dimming 0-10 V

-

Dimming 1-10 V

-

Dimming DALI

-

Dimming DALI-2

-

Dimming DMX

-

Dimming DSI

-

Dimming GPRS

-

Dimming LineSwitch

-

Dimming RF

-

Dimming Sine Wave Reduction

-

Dimming Touch and Dim

-

Dimming Zigbee

-

Dimming depending on control gear

-

Dimming mains voltage modulation

-

Dimming manufacturer's proprietary system

-

Dimming phase cut-off

-

Dimming phase cut-on

-

Dimming potentiometer (integrated)

-

Dimming programmable

-

Dimming with push-button

-

Emergency power supply integrated

-

Energy efficiency class of the light source according to EU regulation 2019/2015

D

Exchangeable control gear

+

Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)

- %

Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)

- %

Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)

10 %

Filament test according to IEC 60695-2-11

650 °C - 30 s

Fit for monitor workplace acc. EN 12464-1

+

Flickering value Pst LM

0.06

Height/depth

67.4 mm

IFTTT support available

-

Impact strength

IK08

LED nominal current at constant current

762 .. 762 mA

Laius

265 mm

Lamp efficacy

164 lm/W

Lamp holder

None

Lamp type

LED not exchangeable

Length

340.5 mm

Light distributor

Diffuser lens/optic/panel

Light outlet

Direct

Light sharing

Symmetric

Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)

- %

Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)

- %

Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)

90 %

Luminaire efficacy

124 lm/W

Luminaire with limited surface temperature, sign "D“

-

Luminous flux

8000 .. 8000 lm

Luminous flux adjustable

Continuously variable

Luminous intensity

1495 cd

Material cover

Glass transparent

Material housing

Aluminium

Max. number of luminaires per miniature circuit breaker B16 (MCB)

8

Max. number of luminaires per miniature circuit breaker C16 (MCB)

13

Max. system power

66 W

No dim function

+

Nominal current

629 .. 629 mA

Nominal voltage

220 .. 240 V

Number of poles

3

Operation by Bluetooth

-

Outer diameter

- mm

Photobiological safety according to EN 62471

RG1

Power factor

0.98

Protection class

I

Rated ambient temperature acc. IEC62722-2-1

-40 .. 35 °C

Rated life time L70/B50 at 25 °C

- h

Rated life time L80/B10 at 25 °C

75000 h

Rated luminous flux acc. IEC 62722-2-1

8000 lm

Reflector

None

Reflector colour

Other

Stroboscope effect value SVM

0.09

Suitable for built-in mounting

-

Suitable for ceiling mounting

-

Suitable for clamp-mounting

-

Suitable for lamp power

61 .. 61 W

Suitable for light-track mounting

-

Suitable for low voltage cable system

-

Suitable for number of lamps

28

Suitable for pedestal/floor mounting

+

Suitable for surface mounting

+

Suitable for suspended mounting

-

Suitable for traverse mounting

+

Suitable for wall mounting

+

Surface brushed

+

Surface protection

Powder coating

Total harmonic distortion

7.37

Type of control gear

LED operating device current-controlled

Type of wiring

Ending

Unified Glare Ratio (UGR)

0

Voltage type

AC

Värvustemperatuur

4000 K

Wall mounting

+

With light sensor

-

With light source

+

With movement sensor

-
