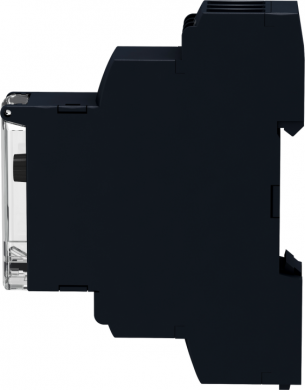

Time delay relay 10 functions, 1 s..100 h, 24..240 V AC, 1 OC. range of product: Zelio Time - product or component type: modular timing relay - discrete output type: relay - width: 17.5 mm - component name: RE17R - time delay type: A, Ac, At, B, Bw,

Clock function, starting with pause, variable

+

Clock function, starting with pulse, variable

+

Complete with socket

-

Depth

72 mm

Front mounting

-

Function delay-on energization

+

Function delay on de-energization

+

Function flashing, starting with pause, fixed time

+

Function flashing, starting with pulse, fixed time

+

Function floating contact on de-energization

+

Function floating contact on energization

+

Function pulse shaping

+

Function star-delta

-

Kõrgus

90 mm

Laius

17.5 mm

Nominal current

8 A

Number of outputs, delayed, change-over contact

1

Number of outputs, delayed, normally closed contact

0

Number of outputs, delayed, normally open contact

0

Number of outputs, undelayed, change-over contact

1

Number of outputs, undelayed, normally closed contact

0

Number of outputs, undelayed, normally open contact

0

Outputs, reversible delayed/undelayed

-

Pluggable on auxiliary contact block

-

Rated control supply voltage Us at AC 50HZ

24 .. 240 V

Rated control supply voltage Us at AC 60HZ

24 .. 240 V

Rated control supply voltage Us at DC

24 .. 24 V

Remote operation possible

-

Suitable for DIN rail (top hat rail) mounting

+

Suitable for front mounting

+

Suitable for remote control

-

Time range

0.1 .. 360000 s

Type of electric connection

Screw connection

Voltage type for actuating

AC/DC

With plug-in socket

-

With semiconductor output

-
